Moving Coil Versus Moving Magnet Explained

A cartridge can make a familiar record sound newly revealing or strangely constrained, even when the turntable, arm, and record itself have not changed. The moving coil versus moving magnet decision is therefore not a minor specification choice. It defines the signal your phono stage must amplify, the loading requirements it must control, and much of the character and resolution your system can retrieve from the groove.

For serious vinyl playback, neither topology is automatically superior. A carefully matched moving-magnet cartridge through a quiet, properly designed phono stage can be deeply convincing. A moving-coil cartridge, correctly installed and amplified by a low-noise discrete Class-A circuit, can expose another level of transient speed, low-level detail, and dimensional information. The correct choice depends on the whole analogue chain rather than the badge on the cartridge body.

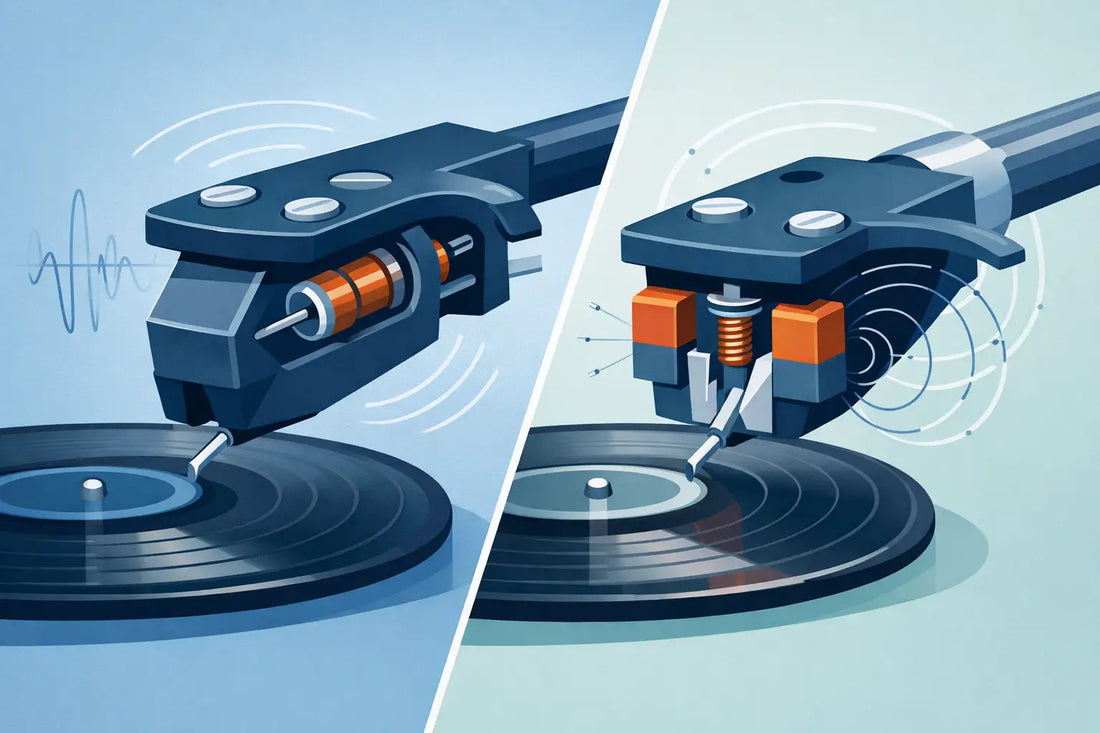

Moving Coil Versus Moving Magnet: The Core Difference

A moving-magnet, or MM, cartridge places small magnets at the rear of the cantilever. As the stylus traces the record groove, those magnets move in relation to fixed coils within the cartridge body. That motion generates the electrical signal sent to the phono stage.

In a moving-coil, or MC, design, the arrangement is reversed. Tiny coils are attached to the cantilever and move within a fixed magnetic field. Because the moving assembly can be much lighter, a well-executed MC cartridge may respond more rapidly to the smallest groove modulations. This is one reason high-end moving coils are valued for their ability to portray instrumental texture, dynamic contrasts, image focus, and the decay of recorded spaces.

The engineering trade-off is immediate. A coil small enough to keep moving mass low has relatively few turns of wire, producing a far lower output voltage than a typical MM cartridge. That fragile signal needs much greater gain, and every limitation in the phono stage becomes easier to hear.

Output Level Changes Everything

Most MM cartridges produce roughly 3 to 6 mV of output at the standard test velocity. This is substantial by phono standards. They generally need around 36 to 42 dB of gain before the line-level preamplifier or integrated amplifier can take over.

Low-output MC cartridges commonly produce between 0.1 and 0.5 mV. They may require 60 to 70 dB of gain, sometimes more depending on the cartridge and system sensitivity. Raising a signal by that amount without adding hiss, hum, grain, compression, or tonal bleaching is one of the central challenges of phono-stage design.

This is why an MC cartridge connected to a generic built-in phono input so often disappoints. The cartridge may be capable of exceptional retrieval, but the input may not offer enough gain or may introduce noise that obscures the information the cartridge has recovered. A purpose-built MC stage needs exceptional noise performance, stable gain architecture, accurate RIAA equalization, and power-supply control commensurate with the tiny signal it handles.

High-output moving-coil cartridges occupy a useful middle ground. They can often work into an MM input because their output is closer to that of a moving magnet. However, achieving higher output typically requires more coil windings, which adds mass. They can offer many of the musical virtues associated with MC designs, but they are not simply low-output MC cartridges with easier compatibility.

Loading Is Part of the Cartridge Design

Cartridge loading is frequently treated as an accessory adjustment. It is not. The load presented by the phono stage affects the electrical behavior of the cartridge and, in turn, can influence tonal balance, transient definition, and perceived openness.

Moving-magnet cartridges are normally designed for a 47 kOhm resistive load. Capacitance is equally significant. The capacitance of the tonearm cable, interconnect, and phono-stage input forms a resonant circuit with the cartridge inductance. Too much capacitance can produce an elevated upper treble or a response that sounds bright but less natural. Too little may shift the balance in the other direction. Manufacturer guidance is the right starting point, but cable capacitance must be included in the calculation.

Moving-coil cartridges have much lower inductance and are less sensitive to capacitive loading. Instead, their behavior is more commonly shaped by resistive loading. Values from around 50 to 500 ohms are common starting points, while some cartridges are happy at higher settings. There is no universal "best" MC load. Internal impedance, generator design, cable length, gain structure, and the voicing of the rest of the system all matter.

A phono stage with practical, repeatable loading options allows the listener to optimize a cartridge rather than force it into a fixed electrical environment. Changes should be made methodically, using familiar records with real dynamic range and natural acoustic instruments, not a quick judgment from one brightly mastered track.

What You Hear From Each Design

Generalizations should be handled carefully because cartridge quality varies far more than category labels suggest. Still, moving-magnet designs are often admired for tonal weight, strong output, rhythmic authority, and excellent value. Their higher signal level makes quiet playback easier to achieve, particularly in systems where the phono stage is not designed specifically for ultra-low-output sources.

Moving-coil designs are often selected for their delicacy and precision. The lower moving mass can translate into cleaner leading edges, more explicit separation within complex recordings, and a greater sense of air around instruments. On a well-recorded vocal, the difference may not be more treble. It may be a clearer sense of breath, scale, and the small dynamic shifts that make a performance feel present.

Those strengths are conditional. A poorly matched MC setup can sound thin, noisy, overly etched, or dynamically restrained. An excellent MM cartridge into a properly matched input will often be more musically satisfying than an expensive MC feeding an inadequate gain stage. The goal is not to chase a topology. It is to preserve the signal with the least possible loss from stylus to line output.

Tracking and Tonearm Compatibility

The cartridge generator is only one part of the mechanical system. Stylus profile, cantilever material, compliance, tracking force, azimuth, vertical tracking angle, and tonearm effective mass all affect what reaches the coils or magnets.

A cartridge with high compliance generally prefers a lower-mass arm, while a lower-compliance design may need a more substantial arm to achieve a suitable arm-cartridge resonance frequency. As a broad target, many experienced setup technicians aim for resonance around 8 to 12 Hz: below audible bass but above common record warps and footfall energy. This is a guide, not a substitute for the cartridge and tonearm manufacturers' specifications.

MC cartridges are often associated with more demanding setup because their resolving power can make small alignment errors obvious. That does not make MM setup casual. Accurate overhang, offset angle, tracking force, and anti-skate matter with every cartridge. The better the cartridge, the less forgiving the system becomes of approximation.

Ownership, Cost, and Long-Term Service

Moving-magnet cartridges usually offer a practical ownership advantage: many accept replaceable stylus assemblies. When the stylus wears, the user can fit a factory replacement without replacing the entire cartridge. This can make a quality MM an intelligent long-term choice for listeners who play records frequently.

Most moving-coil cartridges do not have user-replaceable styli. Once the stylus has reached the end of its usable life, the cartridge must be professionally rebuilt, exchanged, or replaced. Retipping is a specialist service, and results depend on the quality of the work and the suitability of the replacement cantilever and stylus assembly.

MC cartridges also tend to command a higher initial price because of the precision required to wind, position, and align their tiny coils. That cost is justified only when the rest of the system can reveal the improvement. A stable turntable, correctly matched tonearm, vibration control, and a genuinely capable phono stage are not optional supporting details.

Choosing the Right Phono Stage

Select the cartridge first if you already own one, then choose a phono stage with the correct gain and loading flexibility. If you are building from the phono stage outward, choose a design that can accommodate your likely upgrade path. An MM-only input may be sufficient for a fixed MM system, but it can become a constraint if you later move to a low-output MC.

For MC playback, low noise is more valuable than a long list of features. The best circuits do not merely make the signal louder. They preserve microdynamics and tonal integrity while keeping the noise floor sufficiently low that quiet passages remain quiet. Accurate RIAA equalization is equally essential, since any deviation changes the tonal balance encoded into every record.

Whest Audio phono stages are hand-built in London around discrete Class-A engineering, with cartridge gain and loading treated as fundamental parts of the replay chain rather than afterthoughts. That approach reflects the reality of high-end analogue playback: the phono stage is not a utility box between turntable and amplifier. It is where an exceptionally small signal either retains its integrity or loses it.

A moving magnet can be the right final destination, not merely the entry point. A moving coil can be transformative, provided the system is quiet, correctly matched, and carefully set up. Listen for coherence, dynamic freedom, stable imaging, and believable instrumental color. When those qualities align, the cartridge type becomes less of a debate and more of a direct connection to what is cut into the record.
