How to Connect a Phono Preamp Correctly

A phono stage is not an accessory between a turntable and amplifier. It is the gain and equalization circuit responsible for recovering a cartridge’s minute signal without adding noise, compression, or tonal error. Knowing how to connect a phono preamp correctly is therefore fundamental to hearing what your cartridge, tonearm, and records can actually deliver.

The physical connection is straightforward. The engineering decisions behind it are not always. Cartridge type, gain, loading, ground routing, and the input selected on the amplifier all determine whether the result is quiet, dynamic, and convincingly musical, or merely loud.

Confirm whether you need an external phono preamp

First, establish what is already in the signal path. A turntable fitted with a standard cartridge does not normally connect directly to a line-level amplifier input. Moving-magnet and moving-coil cartridges generate far less voltage than a streamer, DAC, or CD player, while vinyl playback also requires RIAA equalization. A dedicated phono preamp performs both tasks.

If your integrated amplifier, preamplifier, or receiver has an input labeled Phono, it may already contain a phono stage. In that case, an external phono stage should not be connected to that Phono input. Doing so applies gain and equalization twice, producing an overloaded, heavily colored sound.

Instead, use an external phono stage when your amplifier has only line inputs, or when its built-in phono circuit limits the potential of a serious turntable and cartridge. Connect the external unit to an input labeled Line, AUX, CD, Tuner, or any other standard line-level input. Labels vary, but the principle does not.

Some turntables include a built-in preamp with a switch marked Phono/Line or Preamp On/Off. For the highest performance with a separate phono stage, defeat the turntable’s internal preamp and select Phono output. Leaving it active and then feeding another phono stage creates the same double-equalization problem.

How to connect a phono preamp step by step

Start with every component powered off. This protects loudspeakers from thumps and prevents an accidental short while handling low-level cartridge connections.

1. Connect the turntable to the phono stage input

Run the turntable’s left and right RCA leads to the corresponding left and right Input sockets on the phono stage. Red is right channel and white or black is left channel. Keep these cables as short as practical and avoid routing them tightly alongside power cords, wall adapters, or network equipment. At cartridge level, even small amounts of electromagnetic interference can be audible.

Do not connect the turntable leads to the phono stage’s output sockets. It sounds obvious, but input and output RCA pairs can sit close together on a compact component. Check the rear-panel labeling rather than relying on position.

2. Attach the ground wire

Most turntables provide a separate ground lead, usually terminated with a spade connector. Secure it beneath the ground post on the phono preamp. This wire establishes a common reference between turntable and phono stage and often prevents the familiar low-frequency hum that can otherwise intrude between tracks.

If your turntable has no separate ground wire, do not invent one immediately. Some designs ground through the RCA cable shields and operate quietly as supplied. If hum occurs, test the system methodically before changing wiring: ensure the turntable is properly connected, move signal cables away from transformers, and confirm that all components are connected to the same AC power strip where possible.

3. Connect the phono stage output to a line input

Use a quality pair of RCA interconnects from the phono preamp’s Output sockets to a spare line-level input on the amplifier or preamplifier. AUX and CD inputs are both suitable. A line input is designed for the output level produced by a phono stage, which is broadly comparable to other source components.

Never use the amplifier’s Phono input for this connection. The correct route is:

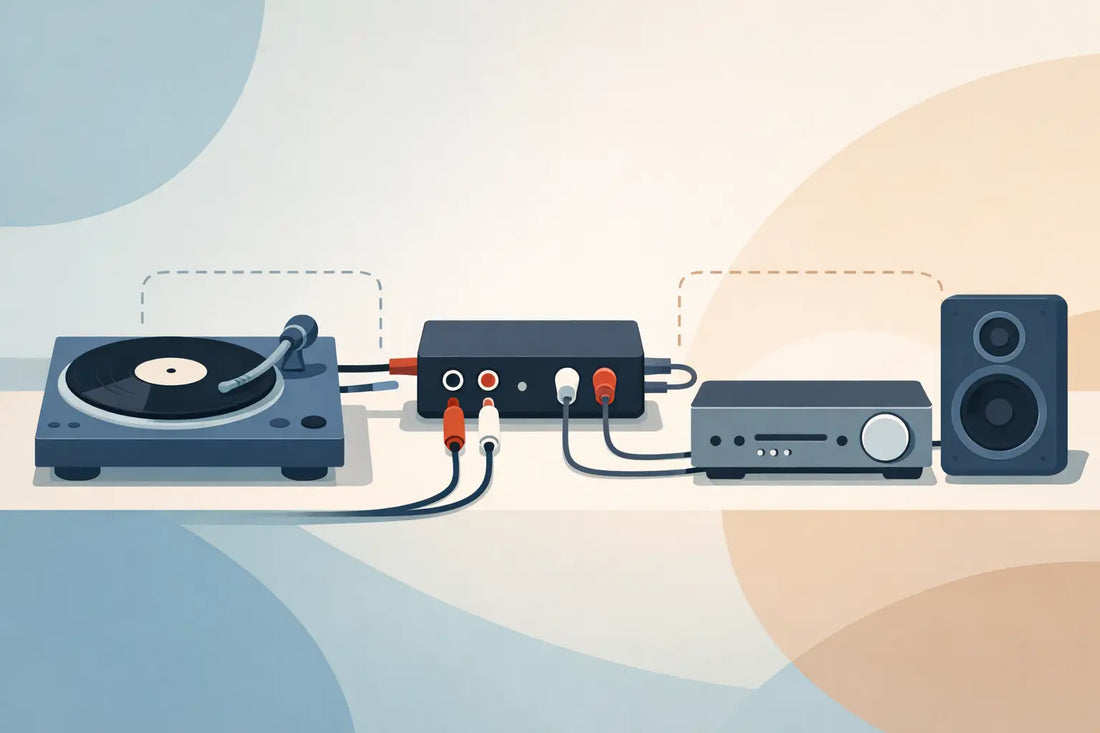

Turntable -> phono preamp input -> phono preamp output -> amplifier line input -> power amplifier or speakers.

If your system uses separate preamplifier and power amplifier components, the phono stage normally feeds a line input on the preamplifier. The preamplifier then controls source selection and volume before feeding the power amplifier.

4. Power up in the right order

Once connections are complete, power the phono preamp first, then the integrated amplifier or preamplifier, and finally the power amplifier if used separately. Reverse the order when shutting down. This small discipline reduces the chance of power-on transients reaching the loudspeakers.

Set gain for the cartridge, not the brand

Correct routing gets music playing. Correct gain allows the system to perform at its intended dynamic range.

Moving-magnet cartridges typically produce around 3 to 6 mV and commonly require 35 to 45 dB of gain. High-output moving-coil cartridges can often use a similar setting. Low-output moving-coil designs may produce only 0.1 to 0.6 mV and usually need considerably more gain, often in the 55 to 70 dB range depending on cartridge output and the sensitivity of the downstream amplifier.

There is no universal setting that is right for every MC cartridge. Too little gain forces excessive use of the volume control and can make playback seem restrained. Too much gain raises noise, narrows usable volume range, and may overload subsequent circuitry on highly modulated records.

Begin with the cartridge manufacturer’s recommended operating range, then assess real listening levels. With a normal record playing, your volume control should sit in a sensible part of its range rather than near its maximum or barely open. More gain is not automatically more detail. A low-noise, correctly matched gain structure is what preserves microdynamic information and stable imaging.

Match loading with care

Loading is especially consequential with moving-coil cartridges. The phono stage input presents an electrical load to the cartridge, expressed in ohms. This interaction can affect high-frequency balance, transient behavior, perceived body, and the sense of openness around instruments.

Moving-magnet cartridges generally expect 47 kOhm input resistance, paired with appropriate capacitance. Many MC cartridges will work well with a load above 100 ohms, but the correct figure depends on the generator design, cable capacitance, tonearm wiring, and the tonal balance of the complete system.

Start from the cartridge maker’s recommendation rather than treating loading as a tone control. Then make changes in controlled increments, using familiar recordings with naturally recorded cymbals, vocals, acoustic bass, and dense orchestral passages. A lower load can sound more damped or controlled; a higher load may feel more open, but can also expose unwanted brightness. The best setting is the one that preserves tonal truth and dynamic ease without drawing attention to the hi-fi itself.

High-end adjustable phono stages make this process practical because gain and loading can be optimized without compromising the circuit’s fundamental design. A discrete Class-A stage, properly matched to the cartridge, has the current delivery and low-noise performance to reveal the difference between a merely acceptable setup and truly high-resolution vinyl playback.

Diagnose hum before replacing cables

A persistent hum is usually a grounding, placement, or gain issue, not proof that every cable must be upgraded. With the amplifier volume at a moderate setting and no record playing, listen first. If hum changes when you touch the tonearm or ground wire, inspect the ground connection. If it changes as you move the phono stage, keep it farther from power amplifiers, AC transformers, routers, and switching power supplies.

Hum in one channel can indicate a loose RCA plug, oxidized connector, or tonearm wiring fault. Hum in both channels is more often related to ground loops or external interference. Avoid running phono leads parallel to AC cables for long distances. Crossing them at an angle is preferable where they must meet.

Do not confuse low-level tube rush or normal circuit noise with a ground problem. With a low-output MC cartridge and substantial gain, a faint noise at close range may be normal. What matters is whether it is audible from the listening position during quiet passages.

Give the phono stage a stable operating environment

A phono preamp handles the smallest signal in the system, so placement deserves more care than it receives in many installations. Put it on a stable surface with ventilation, away from loudspeakers where possible, and clear of power supplies. Do not stack it directly on a power amplifier or place it immediately beside the turntable motor.

For listeners building a reference-level analog front end, the phono stage is a component to select and configure with the same seriousness as the cartridge. Whest Audio’s hand-built London phono stages are engineered around discrete Class-A operation, cartridge matching flexibility, and low-noise signal recovery because these details are audible long after the connections have been made.

Once the system is quiet and the gain structure is right, resist the urge to keep changing settings after every record. Let a properly configured phono stage disappear from the chain. The reward is not a louder presentation, but a more convincing one: wider dynamic contrast, clearer instrumental texture, and the sense that the stylus is tracing the performance rather than simply reproducing a recording.
