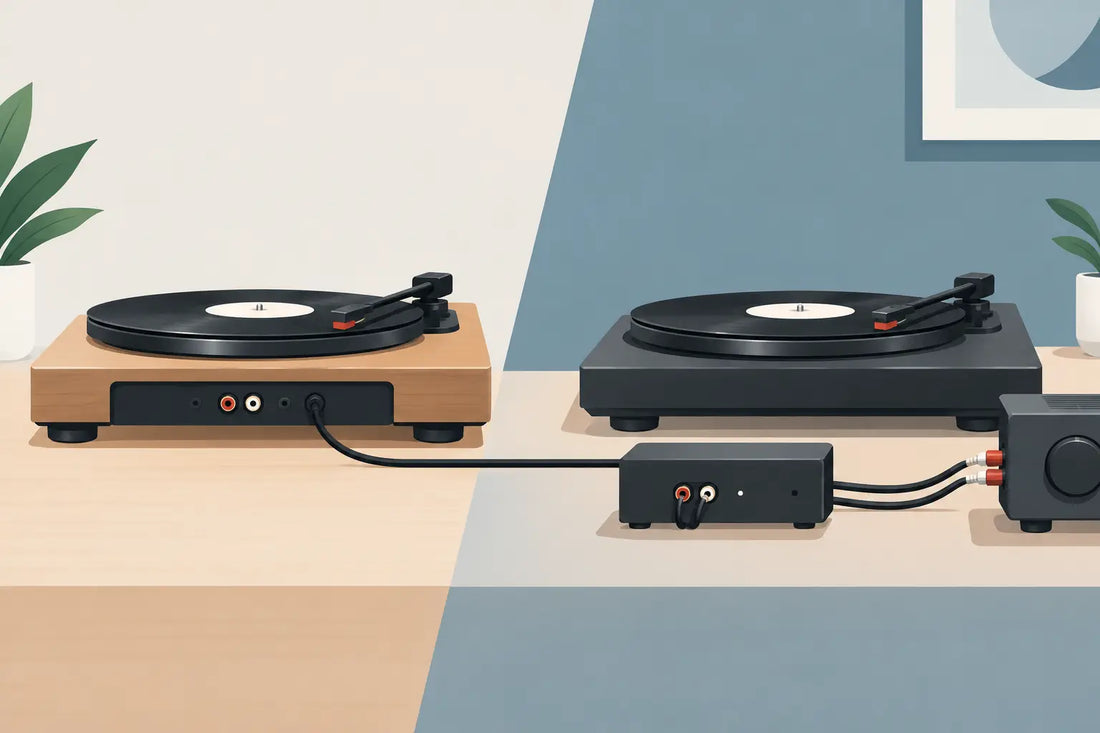

Built In Versus External Phono Stages Explained

A turntable does not produce a line-level signal. It produces an extremely small, highly vulnerable signal that must be amplified and equalized correctly before the rest of the system can reveal what is in the groove. That is why built in versus external phono is not a question of convenience alone. It is a decision about noise floor, gain accuracy, cartridge control, and the ultimate authority of vinyl playback.

For a modest moving-magnet cartridge in a simple system, a built-in phono input can be entirely functional. For a serious moving-coil cartridge, a revealing amplifier, and a record collection worth hearing properly, the limitations of an integrated solution become much harder to ignore. The phono stage is not an accessory. It is one of the most consequential gain stages in an analog system.

What a Phono Stage Must Actually Do

A phono stage has two demanding jobs. First, it raises the cartridge output to line level. A typical moving-magnet cartridge may supply around 4 to 6 mV, while a low-output moving-coil design can deliver only 0.2 to 0.5 mV. That signal must be amplified substantially without obscuring low-level musical information with hiss, hum, or grain.

Second, it applies RIAA equalization. Records are cut with bass reduced and treble boosted, a practical measure that improves groove geometry and reduces surface noise. Playback requires the inverse curve, executed with precision across the audible band. Small inaccuracies can alter tonal balance, bass weight, image focus, and the natural decay of instruments.

Those requirements explain why phono amplification is fundamentally different from an ordinary line-level input. At this point in the chain, circuit topology, component quality, grounding, shielding, and power supply regulation are all audible engineering decisions.

Built In Versus External Phono: The Core Difference

A built-in phono stage is usually incorporated into an integrated amplifier, receiver, turntable, or active speaker system. Its appeal is obvious: fewer boxes, fewer cables, lower cost, and a straightforward setup. The manufacturer has also made the basic compatibility decisions for the owner.

The compromise is physical and electrical proximity. Inside an amplifier, a low-level phono circuit may sit near transformers, digital control sections, display electronics, switching supplies, and high-current output stages. Careful engineering can reduce interference, but the phono signal remains unusually susceptible to contamination. A cost-sensitive onboard stage also has to share the product budget with every other section of the amplifier.

An external phono stage is purpose-built for one task. It can place sensitive gain circuitry in a dedicated chassis, use a more substantial power supply, provide proper separation between channels and stages, and offer the adjustment range that high-quality cartridges require. This is not simply about adding a component. It allows the analog front end to be engineered without the compromises of an all-in-one chassis.

Why Gain and Loading Matter More With Moving Coil

Moving-magnet cartridges are comparatively forgiving. Most expect a standard 47 kOhm input load and need roughly 40 dB of gain. Many built-in phono inputs are designed around precisely those figures, and a well-matched MM system can sound satisfying through them.

Moving-coil cartridges place much greater demands on the phono stage. Their lower output requires more gain, often between 60 and 70 dB in total, and their electrical behavior can benefit from carefully selected loading. Set the gain too low and the system can sound constrained, with weak dynamics and excessive reliance on the amplifier’s volume control. Set it too high and overload margins shrink while noise becomes more apparent.

Loading is equally consequential. The correct resistance is not a universal number printed on a specification sheet and forgotten. It is a means of controlling the cartridge-generator interaction. Different values can affect treble openness, tonal density, transient edge, and perceived ease. An external phono stage with accessible gain and loading options lets the listener establish the cartridge’s best operating condition rather than accept a generic default.

That flexibility is particularly valuable when changing cartridges, tonearms, or systems. A fixed onboard input may work with one cartridge and become the limiting factor with the next. A high-end external design remains a stable foundation while the rest of the analog system develops.

Noise Is Not Just Background Hiss

Noise performance is often discussed as a specification, but its musical effect is broader than audible hiss between tracks. When a phono stage has a low noise floor, small dynamic changes emerge more clearly. The decay of a piano note lasts longer, a vocalist’s phrasing carries more inflection, and the acoustic space around instruments is easier to perceive.

Low-output moving-coil operation makes this especially difficult. The stage must provide very high gain while avoiding transistor noise, resistor noise, hum pickup, and power-supply artifacts. A circuit that is merely quiet at idle is not necessarily composed under musical peaks. It must also preserve headroom, recover quickly from transients, and remain stable with real-world cartridge impedances.

This is where discrete Class-A phono circuitry earns its place. Properly executed, it avoids the limitations of generic integrated solutions and gives the designer direct control over critical operating parameters. Class-A operation is not a marketing shortcut. It demands disciplined thermal design, carefully selected devices, and a power supply capable of supporting the circuit without instability or compression.

The Power Supply Is Part of the Signal Path

The power supply does not carry music in the conventional sense, yet its behavior directly influences what the gain stages can recover. Current delivery, regulation, filtering, grounding strategy, and isolation all affect the background against which tiny cartridge signals are amplified.

Built-in stages commonly operate from the host component’s shared supply rails. Again, this is not automatically poor design, but it creates constraints. The phono section may be exposed to changing current demands from other circuits, and available space limits transformer placement, filtering, and regulation.

A dedicated external stage can use power supply architecture designed for low-level analog work from the outset. Separation from the main amplification chassis helps reduce magnetic interference, while substantial regulation can maintain composure during dynamic passages. The result is often not an exaggerated sonic signature. It is greater stability: firmer bass, cleaner transients, less congestion, and a more convincing sense of scale.

When a Built-In Phono Stage Is the Right Choice

There is no virtue in adding boxes for their own sake. A built-in phono stage is a sensible choice when the system is compact, the cartridge is a standard-output moving magnet, and the priority is straightforward, enjoyable record playback. It can also be a useful starting point for a listener who is still establishing cartridge alignment, tracking force, and basic turntable setup.

The key is to recognize its role honestly. If the presentation lacks low-level detail, sounds dynamically flat, becomes hard or vague at higher volume, or offers no suitable settings for a moving-coil cartridge, the phono stage may be the constraint rather than the turntable itself.

Do not assume an expensive integrated amplifier automatically contains a phono stage of matching ambition. Some excellent amplifiers include competent MM inputs for practicality; others omit phono altogether so that the owner can choose a dedicated solution. Neither approach is wrong. What matters is whether the circuit is appropriate for the cartridge and the performance level expected of the system.

Choosing an External Stage With Purpose

An external phono stage should be selected as carefully as a cartridge. Confirm that its gain range covers the cartridge output without forcing an extreme volume setting. Check that loading can be optimized for the cartridge, particularly with moving coil. Consider overload margin, RIAA accuracy, channel matching, grounding provisions, and the quality of the power supply.

Also consider usability. Settings should be clear, repeatable, and ideally adjustable without dismantling the system. A phono stage is a precision instrument, but it should support experimentation rather than make it intimidating. Once the cartridge is correctly aligned and the stage is correctly configured, changes in load and gain should be evaluated over familiar records, not quick snippets.

Hand-built London designs such as those from Whest Audio place this level of control at the center of the product, with discrete Class-A engineering intended for demanding MM and MC cartridges. For owners building a long-term analog system, this is the meaningful distinction: a dedicated stage is designed to expose the cartridge’s capability, not merely make it audible.

The best next step is to assess the system you already own. If the cartridge, turntable, and records deserve more than a convenient default, a properly matched external phono stage can make the collection sound less like a source component and more like a performance happening in the room.
